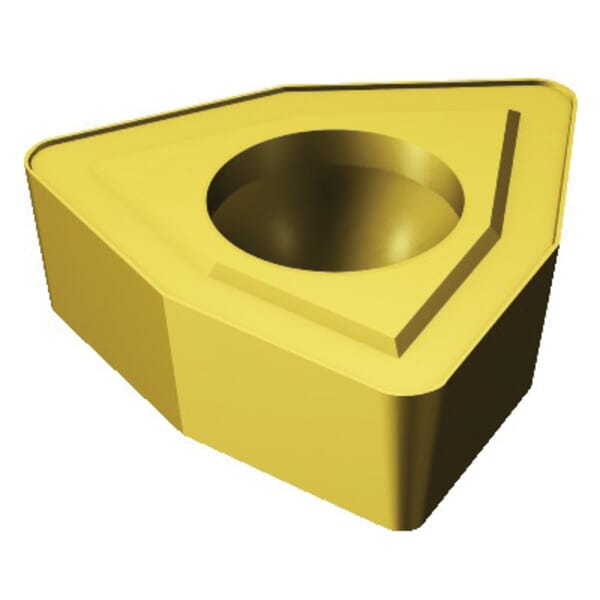

Sandvik Coromant 5756137 Coromant U Drilling Insert, ANSI Code: WCMX 06 T3 08-58 235, Trigon Shape, Material Grade: M, P, 06T308 Insert, WCMX-58 (DT) Insert, 0.1562 in THK, 3/8 in Inscribed Circle, For Use On Steel and Stainless Steel, Medium Feed

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5756137 Coromant U Drilling Insert, ANSI Code: WCMX 06 T3 08-58 235, Trigon Shape, Material Grade: M, P, 06T308 Insert, WCMX-58 (DT) Insert, 0.1562 in THK, 3/8 in Inscribed Circle, For Use On Steel and Stainless Steel, Medium Feed

ManufacturerSandvik Coromant

Part #826256137

MFG #5756137

Sandvik Coromant Drilling Insert, Series: Coromant U, WCMX-58 (DT) Insert, 06T308 Insert, Trigon, 3/8 in Inscribed Circle, 0.1562 in Thickness, 58 Chipbreaker, 0.0314 in Corner Radius, 0.1456 in Hole Dia, Manufacturers Grade: 235, 80 deg Included Angle, ANSI Code: WCMX 06 T3 08-58 235, Right Hand, ISO Code: WCMX 06 T3 08-58 235, Asymmetrical Point, Medium Feed, For Use On: Steel and Stainless Steel, Carbide, CVD-TiCN+TiN Coated, Material Grade: M, P

$21.95

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: WCMX 06 T3 08-58 235

Chipbreaker: 58

Corner Radius: 0.0314 in

Country of Origin: JP

Drilling Application: Asymmetrical Point

Feed Type: Medium

Finish: CVD-TiCN+TiN Coated

For Use On: Steel and Stainless Steel

Hand of Insert: Right

Hole Diameter: 0.1456 in

Included Angle: 80 deg

Inscribed Circle: 3/8 in

Insert Size: 06T308

Insert Style: WCMX-58 (DT)

ISO Code: WCMX 06 T3 08-58 235

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 235

Material: Carbide

Material Grade: M, P

Series: Coromant U

Shape: Trigon

Thickness: 0.1562 in

High tool body strength enables demanding plunge drilling operations
Power efficient, productive solution with high metal removal rate
Center and periphery insert
Geometries and grades for all materials
Wiper geometry for best surface finish

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: WCMX 06 T3 08-58 235

Chipbreaker: 58

Corner Radius: 0.0314 in

Country of Origin: JP

Drilling Application: Asymmetrical Point

Feed Type: Medium

Finish: CVD-TiCN+TiN Coated

For Use On: Steel and Stainless Steel

Hand of Insert: Right

Hole Diameter: 0.1456 in

Included Angle: 80 deg

Inscribed Circle: 3/8 in

Insert Size: 06T308

Insert Style: WCMX-58 (DT)

ISO Code: WCMX 06 T3 08-58 235

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 235

Material: Carbide

Material Grade: M, P

Series: Coromant U

Shape: Trigon

Thickness: 0.1562 in

High tool body strength enables demanding plunge drilling operations
Power efficient, productive solution with high metal removal rate
Center and periphery insert
Geometries and grades for all materials
Wiper geometry for best surface finish

Catalog

SDS
