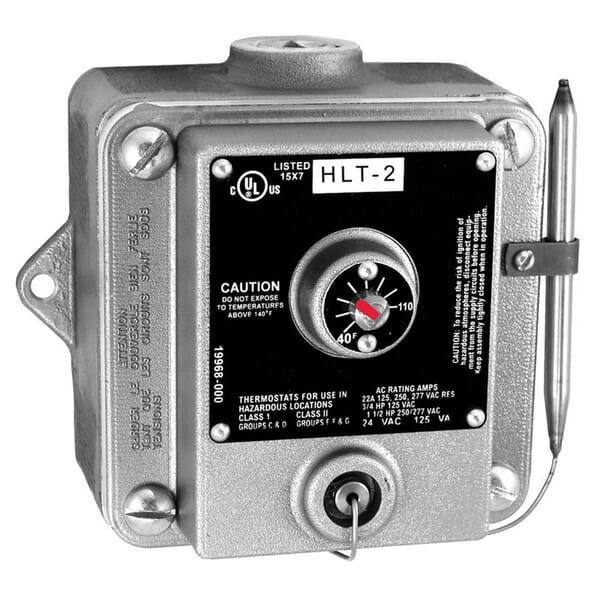

TPI HLT2 Thermostat, 2-Pole Heat/Cool Thermostat, 40 to 110 deg F Control, Snap, DPDT Switch, Domestic

ManufacturerTPI

Part #633452316

MFG #HLT2

UPC #686334523165

TPI Thermostat, Series: HLT, 2-Pole Heat/Cool Thermostat, 40 to 110 deg F Control Range, Snap, DPDT Switch, Capillary Sensor, 120 to 277 VAC, 22 A Full Load, Remote Mount, Gray/Silver, 6.375 in H x 5.75 in W x 5.57 in D, Domestic

$642.47

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: TPI Corporation

Color: Gray/Silver

Control Range: 40 to 110 deg F

Country of Origin: US

Dimensions: 6.375 in H x 5.75 in W x 5.57 in D

Domestic/Import: Domestic

Full Load Current: 22 A

Manufacturer Name: TPI Corporation

Mounting Type: Remote

Sensor Type: Capillary

Series: HLT

Switch Action: Snap

Switch Type: DPDT

Thermostat Type: 2-Pole Heat/Cool

Voltage Rating: 120 to 277 VAC

Fahrenheit and Celsius temperature scale
Casting tapped top and bottom for 3/4 in conduit
1/2 in THK cast aluminum housing
3/4 hp at 125 VAC, 1-1/2 hp at 250 VAC motor rating (full load)
Pilot duty rating 125 VA at 24 VAC
HLT series incorporates screwdriver temperature adjustment slot and all metal housing
External bulb and capillary sensor
For 1-phase models only

ARRA Compliant|Buy American Act Compliant|cULus Listed|NEMA Class Seven Div 1 Approved|Class I Group C D Class II Group E F G|PROP65:This product can expose you to chemicals including nickel which is known to the State of California to cause cancer, and chromium, which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.cs.gov

Commercial-Hazardous Locations and Indoor-Industrial Applications
