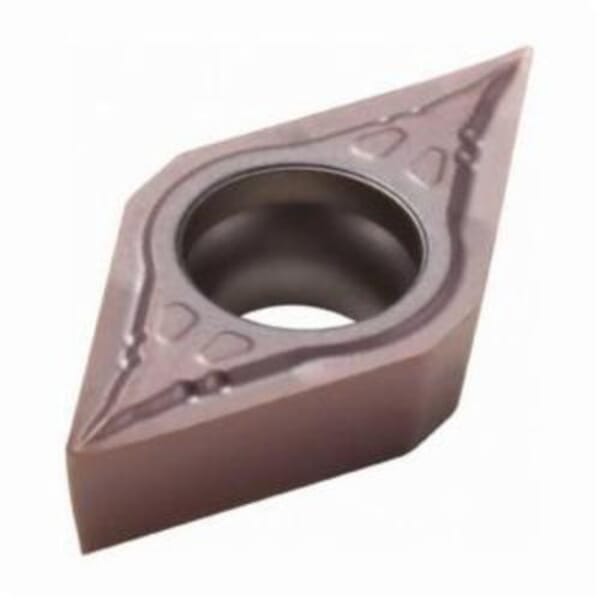

Seco 02984742 Turning Insert, ANSI Code: DCMT32.52-F1 TH1000, DCMT Insert, Material Grade: H, S, 11T308 Insert, Diamond Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Hard Materials and Titanium/Super Alloys, Carbide, Manufacturers Grade: TH1000

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 02984742 Turning Insert, ANSI Code: DCMT32.52-F1 TH1000, DCMT Insert, Material Grade: H, S, 11T308 Insert, Diamond Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Hard Materials and Titanium/Super Alloys, Carbide, Manufacturers Grade: TH1000

ManufacturerSeco

Part #288521656

MFG #02984742

Seco Turning Insert, DCMT Insert, 11T308 Insert, Diamond, 3.75 mm Maximum Depth of Cut, 9.5 mm Inscribed Circle, 3.97 mm Thickness, 11 Seat, Positive Rake, F1 Chipbreaker, 0.8 mm Corner Radius, 4.5 mm Hole Dia, Manufacturers Grade: TH1000, ANSI Code: DCMT32.52-F1 TH1000, ISO Code: DCMT11T308-F1 TH1000, 55 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlSiN Nanolaminate Coated, Material Grade: H, S, For Use On: Hard Materials and Titanium/Super Alloys

$17.32

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: DCMT32.52-F1 TH1000
Chipbreaker: F1
Corner Radius: 0.8 mm
Country of Origin: SE
Cutting Direction: Neutral
Finish: PVD-TiAlSiN Nanolaminate Coated
For Use On: Hard Materials and Titanium/Super Alloys
Hole Diameter: 4.5 mm
Included Angle: 55 deg
Inscribed Circle: 9.5 mm
Insert Size: 11T308
Insert Style: DCMT
ISO Code: DCMT11T308-F1 TH1000
Manufacturer Name: Seco Tools
Manufacturers Grade: TH1000
Material: Carbide
Material Grade: H, S
Maximum Depth of Cut: 3.75 mm
Rake: Positive
Relief Angle: 7 deg
Seat Size: 11
Shape: Diamond
Thickness: 3.97 mm
: Seco Turning Insert, DCMT Insert, 11T308 Insert, Diamond, 3.75 mm Maximum Depth of Cut, 9.5 mm Inscribed Circle, 3.97 mm Thickness, 11 Seat, Positive Rake, F1 Chipbreaker, 0.8 mm Corner Radius, 4.5 mm Hole Dia, Manufacturers Grade: TH1000, ANSI Code: DCMT32.52-F1 TH1000, ISO Code: DCMT11T308-F1 TH1000, 55 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlSiN Nanolaminate Coated, Material Grade: H, S, For Use On: Hard Materials and Titanium/Super Alloys
